How Measure the finished opening in width, height, and depth, then add the space the machine still needs for airflow, door swing, leveling, water, drain, and power. For many 15-inch undercounter units, a practical starting point is around 34 1/4 inches high, 15 1/8 inches wide, and 24 inches deep, but the final pass/fail decision is always the model’s installation spec.
If you have ever had an appliance look like it should fit and then stop halfway under the counter, the problem was usually not the cabinet width alone. Undercounter ice makers are especially unforgiving because a tight rear wall, the wrong drain layout, or a blocked vent can derail the install after the cabinet work is already done. This guide gives you a clean measuring sequence, the main clearance variables, and a final checklist you can use before you buy or install.
Start With the Finished Opening, Not Just the Product Size
A government program's guidance describes this type of ice maker as a self-contained unit, meaning the ice-making system, condenser, and storage bin are built into one cabinet-sized appliance. That matters because you are not measuring for a loose appliance body alone; you are measuring for the appliance plus the way it breathes, drains, opens, and gets serviced.
A state government source's Section 11460 frames a built-in undercounter unit as a slide-in appliance for fixed base cabinetry, not as a freestanding machine that can sit with open space on all sides. At the same time, as a federal publication's test procedure for automatic commercial ice makers makes clear, many authority sources that discuss commercial ice makers focus on test procedures, efficiency, or sanitation rather than cabinet cutout sizing, so they cannot replace a model-specific installation drawing when you are setting a final opening.
What “Finished Opening” Means
Use the narrowest, shortest, and shallowest usable dimensions after flooring, countertop, side panels, and trim are in place. In practical terms, that means:
- Measure the width between finished sidewalls, not between unfinished framing.
- Measure height from the finished floor to the underside of the countertop.
- Measure depth from the back wall to the front plane where the appliance body must sit, while reserving any rear service space the model needs.
If the opening has a face frame, filler strip, baseboard return, or uneven side panel, measure around the obstruction, not around the ideal rectangle you wish you had.
Measure Width, Height, And Depth In The Right Order
The safest measurement sequence is width first, height second, and depth third, because width and height usually determine whether the unit can physically slide in, while depth decides whether it can connect and operate once it is there.

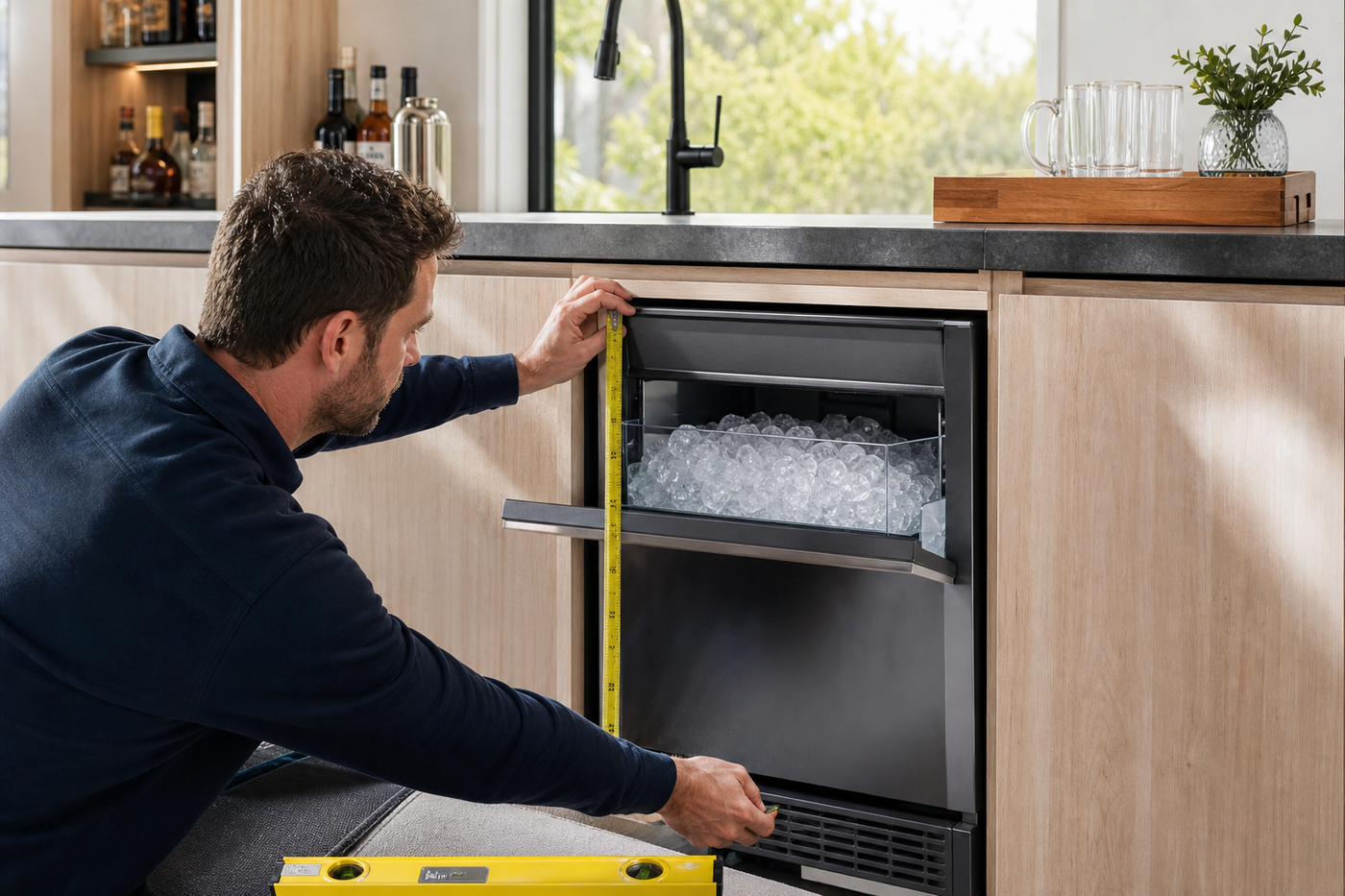

For width, measure at the front, middle, and back of the opening. Use the smallest number. For height, measure at the left, center, and right sides from the finished floor to the countertop underside. Use the smallest number again. For depth, measure from the back wall to the front edge of the cabinet opening, then subtract nothing for guesswork; depth is where utility space and door geometry usually get missed.
Practical Sizing Targets for Common Undercounter Units
A common 15-inch undercounter format uses a rough opening around 34 1/4 inches minimum high, 15 1/8 inches wide, and 24 inches minimum deep. A representative 15-inch machine in this class may have an appliance body about 14 7/8 inches wide, 24 1/8 inches deep without the handle, and an adjustable height from 34 to 35 1/4 inches, which shows why an opening that “matches the unit” can still be too small once leveling and connections are added.
Euhomy examples show the same principle. One model measures 17.7 inches wide, 15.8 inches deep, and 31.5 inches high, while another model measures 15.0 inches wide, 18.0 inches deep, and 32.5 inches high. The opening must exceed those body dimensions and still preserve ventilation and door-swing space.
Use the Shortest Height and the Shallowest Real Depth
Height is not just about whether the cabinet opening clears the top panel. It also has to absorb floor irregularities and leveling-leg adjustment. If your unit has adjustable feet, confirm both the minimum installed height and the maximum height needed to level it on site.
Depth should include rear service space, not just cabinet box depth. On many installs, the water line, drain hose, and power cord need at least 1 1/2 inches behind the machine. If you ignore that buffer, the unit may physically enter the opening but sit proud of the cabinet face or pinch its own connections.
| Measurement Variable | How to Measure It | Why It Matters |
|---|---|---|
| Opening width | Front, middle, and back; use the smallest value | Catches side panels that are out of parallel |
| Opening height | Left, center, and right; use the smallest value | Catches uneven floors and low countertop spots |
| Opening depth | Back wall to front cabinet plane, then reserve rear hookup space | Prevents crushed water, drain, or power lines |
| Appliance height range | Check minimum and maximum leveled height | Confirms the unit can be adjusted and still clear the counter |
| Door-open space | Confirm full 90° swing | Prevents the door or handle from hitting a wall or adjacent unit |
Add Airflow, Door Swing, And Heat Boundaries
Ventilation is the most common reason a “correct” opening is still wrong. Government guidance for air-cooled commercial ice makers says to allow at least 6 inches around the air intake and discharge areas, and an opening that blocks those zones is not adequate. That does not mean every residential built-in needs a visible 6-inch gap on all sides, because many home units are front-breathing, but it does mean you should never assume a sealed cavity is acceptable.
The same guidance says air-cooled machines are best suited to spaces at 80°F or less. In home terms, that means a cabinet beside an oven, dishwasher, grill module, or sun-heated exterior wall may be a poor location even if the chassis fits. A cooler, cleaner opening usually supports better output and less strain on the condenser.
Door Swing Is a Measurement Variable, Not a Styling Detail
Confirm that the door can open at least 90 degrees without hitting a wall, island end panel, adjacent refrigerator handle, or dishwasher. If the machine sits tight to a side wall, a practical threshold for some models is about 3 inches of side clearance between the opened door and the wall so the handle does not strike.
Also check the front clearance beyond the cabinet face. If the door opens into a narrow aisle, bar stool zone, or pantry pass-through, the opening may work on paper but feel wrong in daily use.
Service Access Matters After the Install, Too
Some undercounter machines can be serviced mostly from the front. Others may need to slide out for cleaning, filter checks, or repairs. That means a “flush” built-in look is only a good fit if you still preserve a path to pull the unit forward without disconnecting half the kitchen.
This is also why generic government or regulatory documents are not enough for cutout planning. A government agency’s undercounter-related guidance is useful for airflow and suitability, but it does not provide explicit opening width, height, or depth for a specific model.
Check Water, Drain, And Power Before You Approve the Opening
A cabinet location is not installation-ready just because the box dimensions work. Before you finalize the opening, verify three utility variables: water, drain, and power. For most built-in home units, that means a dedicated water line, a grounded 110V to 120V outlet, and a drain path that matches the machine’s drain design.
Water pressure also matters. A representative undercounter installation spec calls for about 15 to 150 psi. If the opening is perfect but the water pressure is out of range, the install is still incomplete.
Drain Layout Changes the Whole Plan
Drain type is one of the biggest opening-planning variables. A gravity drain works only when the building drain is lower than the machine’s drain outlet and close enough to maintain the proper fall. A practical threshold used in undercounter guidance is that the drain should be lower than the outlet and no more than 12 inches from the machine; otherwise, a pump drain is usually the safer choice.
If you are using a gravity drain, plan around the hose path, not just the drain location. A common spec is a 5/8-inch inside-diameter drain line with a slope of 1 inch per 48 inches of run, or 1/4 inch per foot, with no traps in the line. That slope requirement affects cabinet depth, side penetrations, and how tightly the machine can sit against the rear wall.
Put the Outlet and Water Connection Where the Machine Can Still Slide In
Choose an opening that already has reachable utility connections. If the water valve, drain stub, or receptacle ends up directly behind the center of the machine body, the unit may not sit back far enough even when the rough opening dimensions look correct.
For home projects, this is the point where many people decide whether an undercounter built-in is the right category at all. If the cabinet location cannot support water and drainage without major modification, a countertop or portable ice maker may be the cleaner solution.
Can a Standard Base Cabinet Opening Work?
Often, yes, but only if you measure the actual finished opening and compare it against the exact model spec. Many undercounter installations assume a 34- to 36-inch counter height, and slim 15-inch machines are designed around that range. That makes them a common fit for beverage stations, pantry cabinets, and small home bars.
The catch is that “15-inch class” does not mean every 15-inch opening works. Depths vary widely, and sample undercounter machines can run from roughly 20 3/4 inches to 28 3/5 inches deep. Width classes also scale fast: slim units are often about 15 inches wide, while larger undercounter models may run 24 to 36 inches wide and require completely different plumbing, airflow, and service assumptions.
Three Common Opening Scenarios
For a standard kitchen counter, a 15-inch class unit is the most realistic retrofit target. It is also the class where small misses in width or rear clearance matter most, because the fit is tighter and the service space is smaller.
For a compact beverage or nugget-ice zone, a model in this size range may fit the height well, but you still need to check depth, door swing, and drain path before assuming a standard base-cabinet slot will work. For a larger entertaining or light-business bar setup, wider undercounter machines may fit better under a 40- to 42-inch bar top than under a typical kitchen counter, especially if they sit on legs or have higher installed heights.
Do Not Assume “Built-In” Means “Universal Cutout”
As a state government source's Section 11460 shows, some spec language simply identifies the product as a built-in undercounter icemaker without giving the actual cutout numbers. If your spec sheet or listing does not show explicit width, height, depth, and clearance values with units, stop there and get the installation drawing before modifying cabinetry.
That same caution applies when a source discusses ice makers in broad commercial, sanitation, or energy terms. As the comments posted on a government platform illustrate, those sources can be useful for airflow, suitability, and maintenance context, but not for final fabrication dimensions.
Final Fit Check And First-Use Setup
Before you approve the cabinet work or slide the unit into place, do one last verification against the installation sheet. Compare appliance width, height range, depth, required rear space, drain type, water-pressure range, electrical requirement, and door-swing clearance in one checklist. Then confirm the floor is flat, the opening is level, and the unit can sit flush without pinching any hose or cord.
Once installed, keep the front face aligned with nearby cabinetry, but do not block access to kickplates, hinge covers, or other removable service parts. Then run a simple first-use check: confirm the machine is level, verify the drain flows without backing up, confirm the door opens cleanly, and follow the model’s startup instructions for flushing, cleaning, or any first-batch discard step.
Keep the Air Side and Cleaning Plan Practical
Routine care should be model-specific, and if the instructions are missing, the manufacturer is the correct source for the cleaning procedure. For ongoing performance, clean or replace condenser-side filters or clean condenser fins about every 6 months so airflow does not fall off.
Regular cleaning should happen as often as needed for the machine’s environment and water quality, especially in warm, dusty, or grease-prone spaces. In a home bar or beverage station, that usually means treating airflow access and cleaning access as part of the original space plan, not as an afterthought.
FAQ
Q: What Dimensions Do I Measure for an Undercounter Ice Maker Opening?
A: Measure the finished opening width, height, and depth, then compare the smallest real dimensions against the model’s installation spec. Also measure rear hookup space, door-swing space, and any side-wall interference, because the cabinet box alone does not determine fit.
Q: How Much Clearance Does an Undercounter Ice Maker Need?
A: There is no single universal clearance number because front-breathing and side- or rear-vented machines differ. A safe rule is to follow the model manual exactly, keep the opening from becoming a sealed cavity, and preserve enough space for airflow, rear connections, and a full 90-degree door opening.
Q: Can I Use a Gravity Drain Instead of a Drain Pump?
A: Yes, but only if the building drain sits lower than the machine’s drain outlet and the run is close enough to maintain the proper slope. If the drain is too high, too far away, or likely to trap water, a drain-pump model is usually the better fit.
Practical Next Steps
Measure the finished opening at multiple points, use the smallest width, shortest height, and true usable depth, then add the machine’s clearance variables before you shop. For most home installs, the decision comes down to five checks: chassis size, airflow path, rear hookup room, drain type, and door swing.
If you are comparing Euhomy or similar undercounter units, keep the process simple: pull the exact model dimensions, confirm the counter-height fit, map the water and drain path, and do not approve the opening until the installation sheet answers every clearance question. That extra ten-minute check is usually cheaper than cabinet rework, plumbing changes, or a machine that never sits quite right.
